Engine Compartment Fuse Block

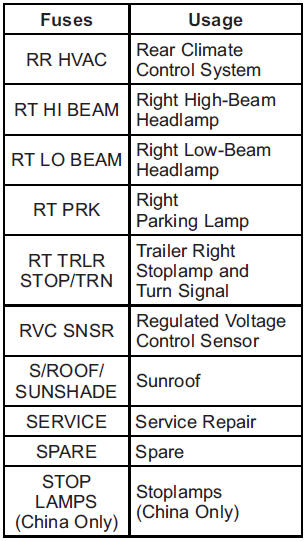

The underhood fuse block is located in the engine compartment, on the passenger side of the vehicle.

Lift the cover for access to the fuse/relay block.

Lift the cover for access to the fuse/relay block.

Notice: Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

To remove fuses, hold the end of the fuse between your thumb and index finger and pull straight out.

The vehicle may not be equipped with all of the fuses, relays, and features shown.

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Instrument Panel Fuse Block
