Engine Compartment Overview

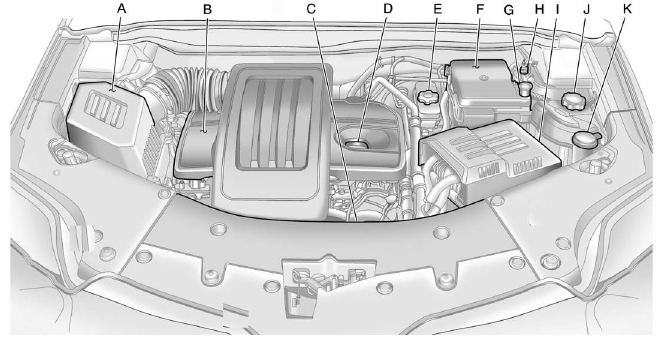

2.4L L4 Engine

2.4L L4 Engine

A. Engine Air Cleaner/Filter on page 10‑14.
B. Engine Cover on page 10‑9.
C. Engine Oil Dipstick (Out of View). See Engine Oil on page 10‑10.
D. Engine Oil Fill Cap. See Engine Oil on page 10‑10.
E. Brake Fluid Reservoir. See Brakes on page 10‑23.
F. Engine Compartment Fuse Block on page 10‑38.
G. Remote Positive (+) Terminal. See Jump Starting on page 10‑76.
H. Remote Negative (−) Terminal. See Jump Starting on page 10‑76.
I. Battery on page 10‑26 (Out of View).
J. Engine Coolant Surge Tank and Pressure Cap. See Engine Coolant on page 10‑17.
K. Windshield Washer Fluid Reservoir. See Washer Fluid on page 10‑23.

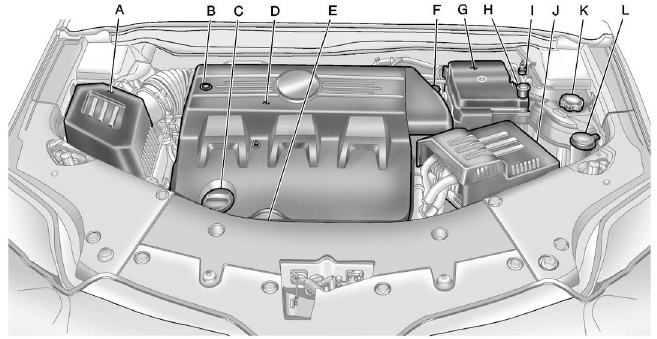

3.0L V6 Engine

3.0L V6 Engine

A. Engine Air Cleaner/Filter on page 10‑14.
B. Power Steering Fluid Reservoir (Under Engine Cover). See Power Steering Fluid (2.4L L4 Engine) on page 10‑22 or Power Steering Fluid (3.0L V6 Engine) on page 10‑22.
C. Engine Oil Fill Cap. See Engine Oil on page 10‑10.
D. Engine Cover on page 10‑9.
E. Engine Oil Dipstick (Out of View). See Engine Oil on page 10‑10.
F. Brake Fluid Reservoir. See Brakes on page 10‑23.
G. Engine Compartment Fuse Block on page 10‑38.
H. Remote Positive (+) Terminal. See Jump Starting on page 10‑76.
I. Remote Negative (−) Terminal. See Jump Starting on page 10‑76.
J. Battery on page 10‑26 (Out of View).
K. Engine Coolant Surge Tank and Pressure Cap. See Engine Coolant on page 10‑17.
L. Windshield Washer Fluid Reservoir. See Washer Fluid on page 10‑23.
