Instrument Panel

Instrument Panel
Instrument Panel

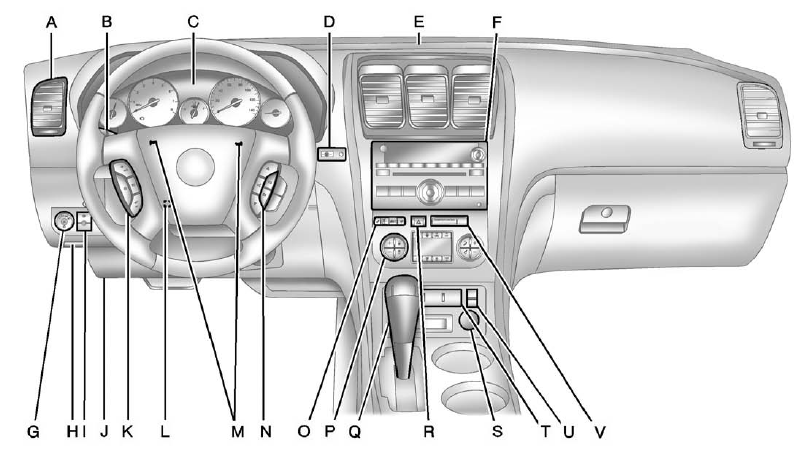

A. Air Vents on page 8‑12.
B. Windshield Wiper/Washer on page 5‑5.
C. Instrument Cluster on page 5‑12.
D. Head-Up Display (HUD) on page 5‑33 (If Equipped).
E. Instrument Panel Storage on page 4‑1. USB Port (Inside IP Storage). Auxiliary Devices on page 7‑36.
F. Infotainment on page 7‑1. Navigation/Radio System (If Equipped). See the separate navigation manual.
G. Exterior Lamp Controls on page 6‑1.
H. Hood Release. See Hood on page 10‑4.
I. Instrument Panel Illumination Control on page 6‑5.
J. Data Link Connector (DLC) (Out of View). See Malfunction Indicator Lamp on page 5‑18.
K. Cruise Control on page 9‑32.
L. Steering Wheel Adjustment on page 5‑2.
M. Horn on page 5‑5.
N. Steering Wheel Controls on page 5‑2.
O. Driver Information Center (DIC) Buttons (If Equipped). See Driver Information Center (DIC) (Without DIC Buttons) on page 5‑30 or Driver Information Center (DIC) (With DIC Buttons) on page 5‑25.
P. Dual Automatic Climate Control System on page 8‑4.
Q. Console Shift Lever (If Equipped). See “Console Shift Lever” under Shifting Into Park on page 9‑20.
R. Hazard Warning Flashers on page 6‑4.
S. Power Outlets on page 5‑9.
T. Rear Window Wiper/Washer on page 5‑6.
Traction Control System (TCS) Disable Button. See StabiliTrak® System on page 9‑30.
Tow/Haul Button (If Equipped). See Tow/Haul Mode on page 9‑26.
Power Liftgate Button (If Equipped). See Liftgate on page 2‑10.
U. Heated and Ventilated Front Seats on page 3‑9 (If Equipped).
V. Passenger Airbag Status Indicator on page 5‑17 (If Equipped).
