Instrument Panel Fuse Block
The instrument panel fuse block access door is located on the driver side edge of the instrument panel.
Pull off the cover to access the fuse block.

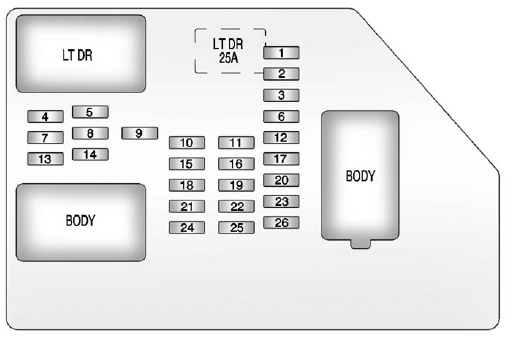

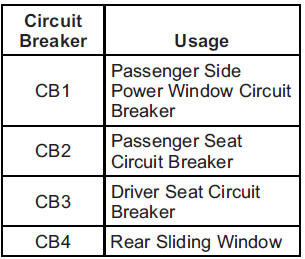

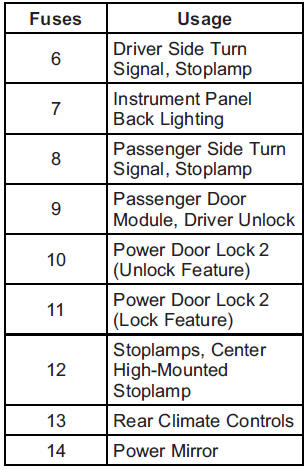

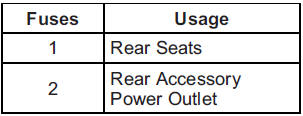

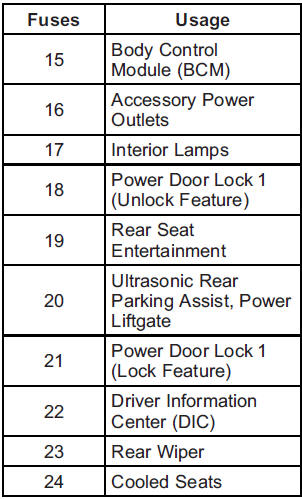

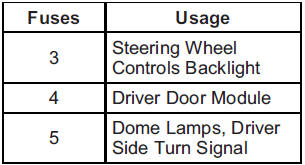

The vehicle may not be equipped with all of the fuses, relays, and features shown.
Center Instrument Panel Fuse Block
The center instrument panel fuse block is located underneath the instrument panel, to the left of the steering column.
Top View
