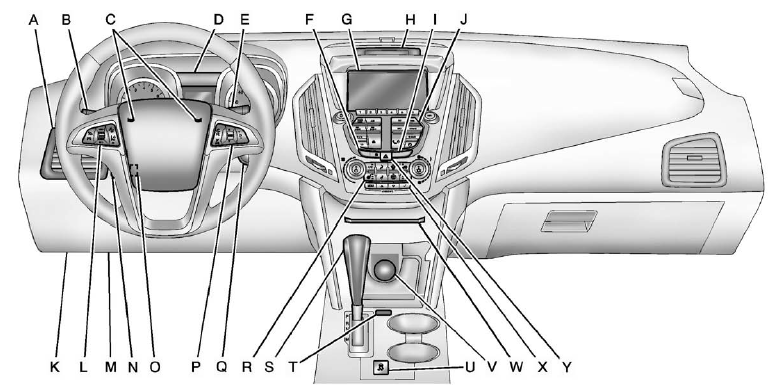

Instrument Panel

A. Air Vents on page 8‑5.

A. Air Vents on page 8‑5.
B. Turn and Lane&-Change Lever. See Turn and Lane-Change Signals on page 6‑3. Exterior Lamp Controls on page 6‑1. Fog Lamps on page 6‑4.
C. Horn on page 5‑3.
D. Instrument Cluster on page 5‑8.
E. Windshield Wiper/Washer on page 5‑3. Rear Window Wiper/Washer on page 5‑4.
F. Power Door Locks on page 2‑7.
G. Navigation Screen (If Equipped).
H. Forward Collision Alert (FCA) Display (If Equipped). See Forward Collision Alert (FCA) System on page 9‑40. Lane Departure Warning (LDW) Indicator (If Equipped). See Lane Departure Warning (LDW) on page 9‑48.
I. Safety Locks on page 2‑8.
J. Infotainment on page 7‑1. Navigation System (If Equipped). See Navigation System Manual.
K. Hood Release. See Hood on page 10‑5.
L. Cruise Control on page 9‑38. Forward Collision Alert (FCA) System on page 9‑40 (If Equipped). Lane Departure Warning (LDW) on page 9‑48 (If Equipped).
M. Data Link Connector (DLC) (Out of View). See Malfunction Indicator Lamp on page 5‑13.
N. Instrument Panel Illumination Control on page 6‑4.
O. Steering Wheel Adjustment on page 5‑2.
P. Steering Wheel Controls on page 5‑2.
Q. Ignition Positions on page 9‑21.
R. Climate Control Systems on page 8‑1 (If Equipped). Automatic Climate Control System on page 8‑3 (If Equipped).
S. Shift Lever. See Automatic Transmission on page 9‑29.
T. Fuel Economy Mode on page 9‑31 (If Equipped).
U. StabiliTrak® System on page 9‑36.
V. Power Outlets on page 5‑6. W. CD Player Slot. See CD Player on page 7‑14.
X. Driver Information Center (DIC) Buttons. See Driver Information Center (DIC) on page 5‑23.
Y. Hazard Warning Flashers on page 6‑3.
