Climate Control System (With Air Conditioning)

Climate Control System (With Air Conditioning)

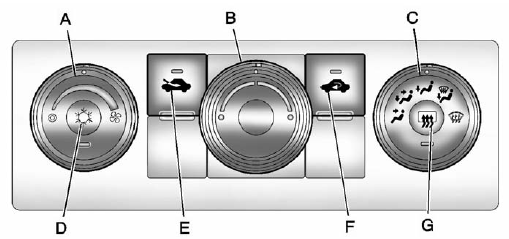

Climate Control System (With Air Conditioning)

A. Fan Control
B. Temperature Control
C. Air Delivery Mode Control
D. Air Conditioning
E. Outside Air
F. Air Recirculation
G. Rear Window Defogger
