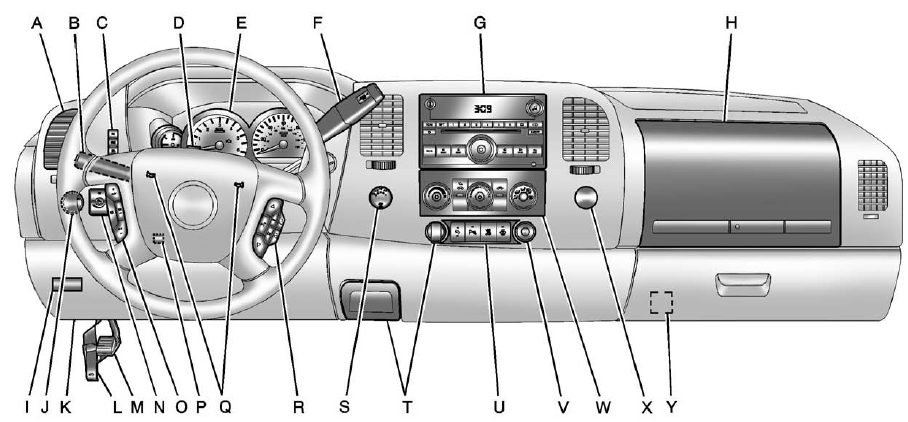

Instrument Panel (Base/Uplevel Version)

Instrument Panel (Base/Uplevel Version)
Instrument Panel (Base/Uplevel Version)

A. Air Vents on page 8‑11.

B. Turn and Lane-Change Lever.

See Turn and Lane-Change Signals on page 6‑6.

Windshield Wiper/Washer on page 5‑5.

C. Driver Information Center (DIC) Buttons. See Driver Information Center (DIC) on page 5‑33.

D. Hazard Warning Flashers on page 6‑5 (Out of View).

E. Instrument Cluster on page 5‑13.

F. Shift Lever. See Automatic Transmission on page 9‑37.

Tow/Haul Selector Button (If Equipped). See Tow/Haul Mode on page 9‑42.

Range Selection Mode (Allison Transmission and Hydra-Matic® 6-Speed Button) (If Equipped).

See Manual Mode on page 9‑41.

G. Infotainment on page 7‑1.

H. Instrument Panel Storage on page 4‑1.

I. Integrated Trailer Brake Controller (If Equipped). See Trailer Towing on page 9‑84.

J. Exterior Lamp Controls on page 6‑1.

K. Data Link Connector (DLC) (Out of View). See Malfunction Indicator Lamp on page 5‑25.

L. Hood Release. See Hood on page 10‑5.

M. Parking Brake on page 9‑58.

N. Dome Lamps on page 6‑8.

Fog Lamps on page 6‑6 (If Equipped).

O. Cruise Control on page 9‑63.

P. Steering Wheel Adjustment on page 5‑2.

Q. Horn on page 5‑5.

R. Steering Wheel Controls on page 5‑3 (If Equipped).

S. Automatic Transfer Case Control (If Equipped). See Four-Wheel Drive on page 10‑32.

T. Ashtray (If Equipped). See Ashtrays on page 5‑12 and Cigarette Lighter on page 5‑11.

U. StabiliTrak® System on page 9‑59 (If Equipped).

Ultrasonic Parking Assist on page 9‑66 (If Equipped).

Pedal Adjust Button (If Equipped). See Adjustable Throttle and Brake Pedal on page 9‑27.

Exhaust Brake (If Equipped).

See “Brakes” in the Duramax diesel supplement.

V. Power Outlets on page 5‑10.

W. Climate Control Systems (with Air Conditioning) on page 8‑1 or Climate Control Systems (with Heater Only) on page 8‑4 (If Equipped).

Dual Automatic Climate Control System on page 8‑5 (If Equipped).

X. Power Take Off (PTO) Control (If Equipped). See Power Take Off (PTO) in the Duramax diesel supplement.

Y. Passenger Airbag Off Control (If Equipped). See Airbag On-Off Switch on page 3‑32.
